AGS Absolute Gear Sensor

详细介绍

General information

AGS absolute gear sensor

Mechanical principle Absolute position detection without battery operation.

Biss-C data protocol up to 21 bits resolution.

Operation speed：0~20000 rpm

Operation temperature：-20~100℃

Diameter up to 200 mm(optional)

Fully sealing package,robust design.

Application

￭ Position and speed feedback for machine tool like Lathe,VMC…

￭ Rotary table,Synchronous motors

￭ High resolution application

￭ harsh environment application

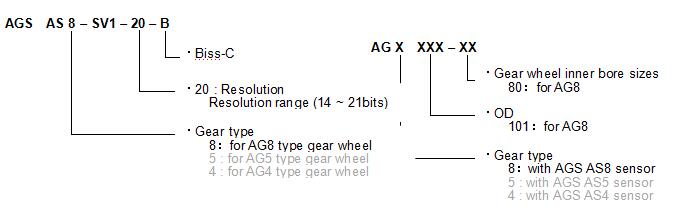

Scanning head and Gear selection
