■ Description
￭ A non-contact inductive method to detect the position and speed of rotation.
￭ Maximum speed up to 25000rpm.
￭ High response output,the output signal has the chord and the square wave.
￭ Modulus 0.4 mm,induction gap 0.15+0.03 mm.
￭ Streamlined,fast plug-in installation,large-scale process.

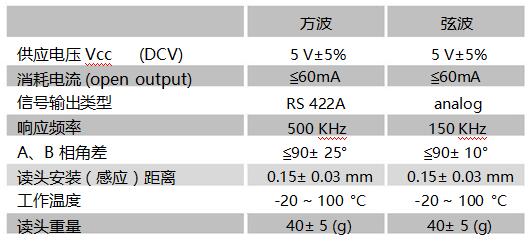

■ Head Reader Specification

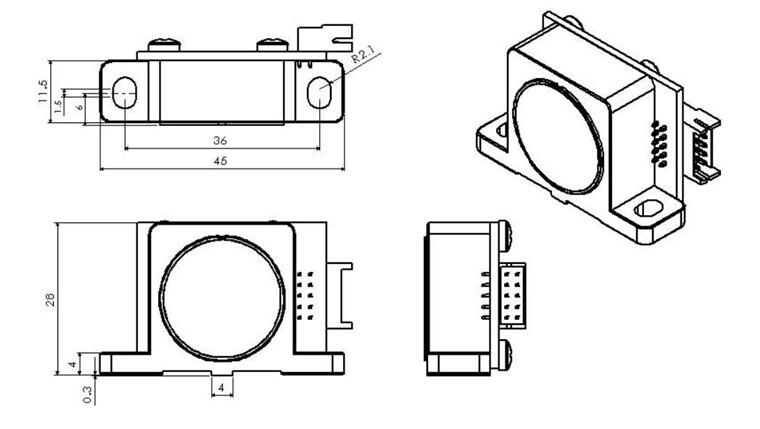

■ Size

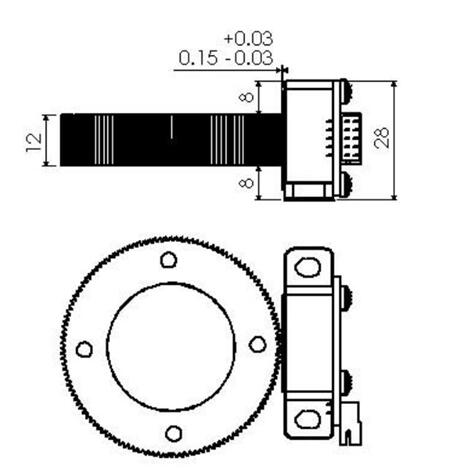

■ Installation diagram

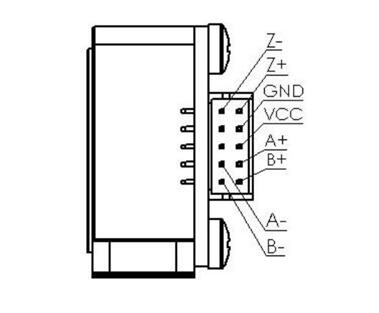

■ Foot Definition
