NGS Numericalization Gear Sensor

■ General information

￭ Contact free detect speed and position

￭ Max.sensing speed up to 20,000 rpm

￭ Standard output:BISS-C protocol

￭ Resolution range:11~21 Bits

￭ Sensing gap:0.15±0.03 mm

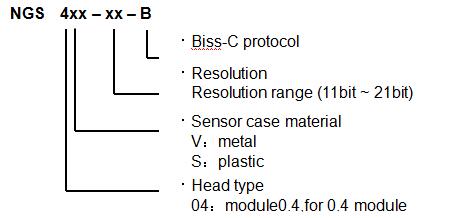

■ Scanning head selection

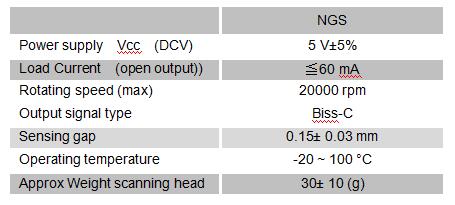

■ Scanning head specification

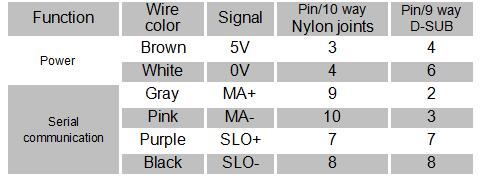

■ Connector assignment

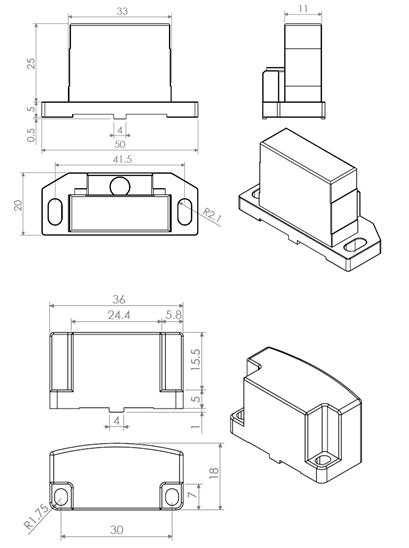

■ Scanning head drawing

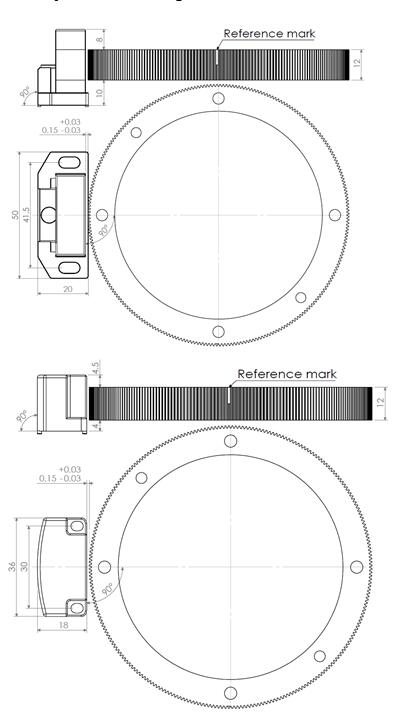

■ Layout of Scanning head and Gear Wheel

■ BiSS-C timing diagram
